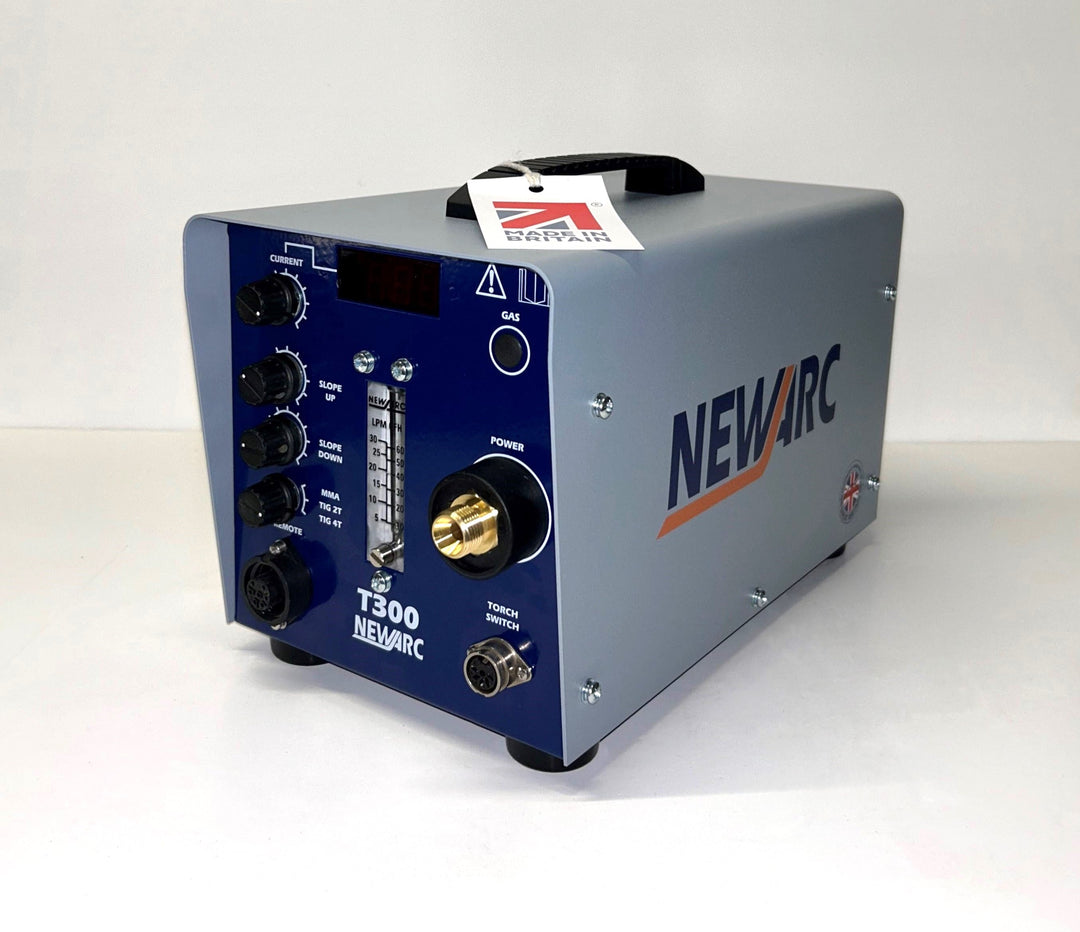

300 AMP COMPACT TIG CONTROL UNIT CC / CCCV

DESCRIPTION

 Mininimum Order Quantity: 1

The TIG300 High Frequency Control Unit is one of the most compact TIG units available. Connect to any Newarc constant current (cc) or multi-process (cccv) machine to gain TIG facility. Main Features:

• Provides gas pre and post purge control.
• High frequency striking.
• Remote current control.
• Digital read out.
• Up and down slope.
• Torch switch latching.
• May be used in excess of 100 metres from the power source.
• Additional sockets are provided at the rear for MMA use.

Main features
• Provides gas pre and post
purge control
• High frequency striking
• Remote current control
• Digital read out
• Up and down slope
• Torch switch latching.
• May be used in excess of 100
metres from the power source
• Additional sockets are provided
at the rear for MMA use

Technical data
Newarc T300
Input voltage range                                   60 – 90V
Maximum Output Current                          300A
Duty Cycle                                                  100 % @ 300amps
Degree of Protection                                    IP54
Dimensions (L x W x H) (mm)                      220 x 180 x 370
       Weight (kg)                                           7.5
