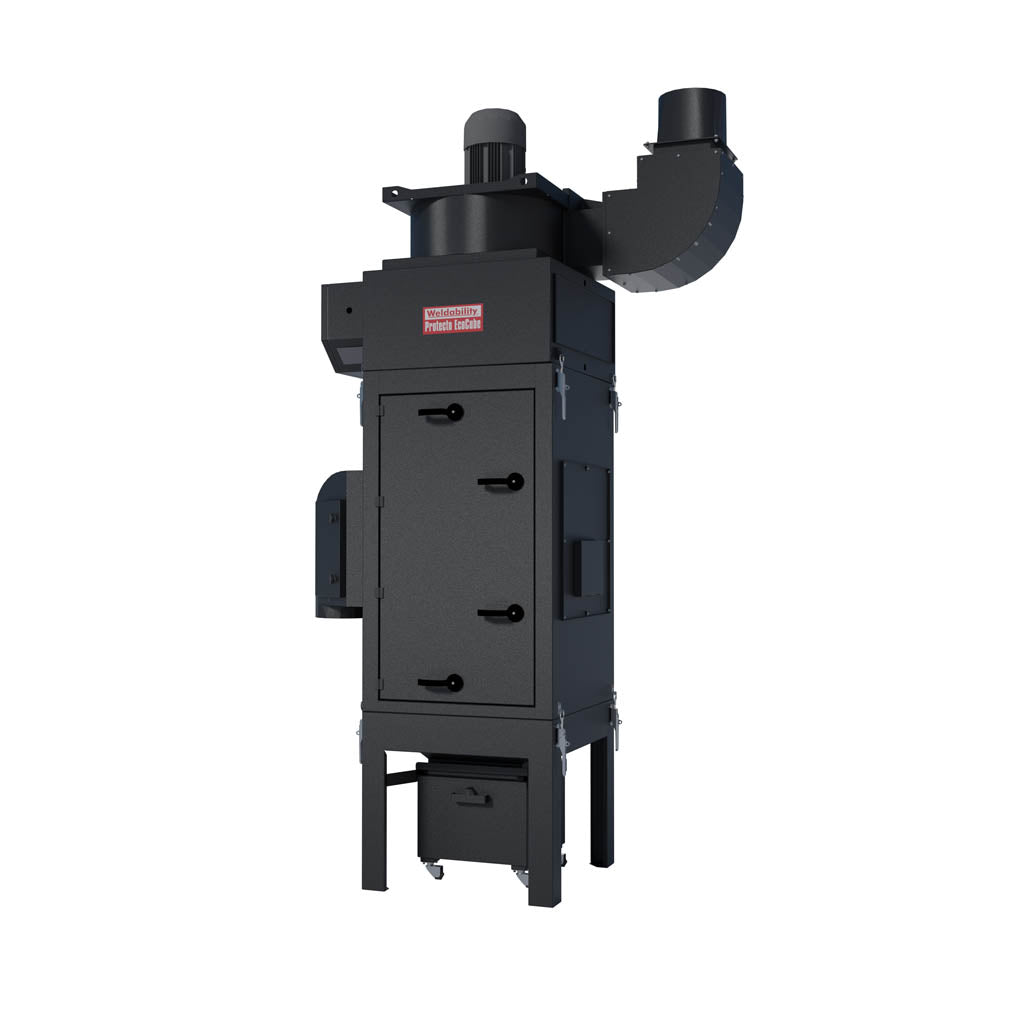

ECOCUBE 415V 7.5KW - MOTOR PLT

DESCRIPTION

 Mininimum Order Quantity: 1

The Ecocube comes on two pallets. This is the motor and feet section. Without the middle section this is not a complete unit. See EXT3CUBM

SUMMARY
The ECO-Cube product line is a filter unit equipped with filter
cartridges applicable for nearly every task in the area of fume and
dust filtration. The polluted air is extracted by means of the
ventilator and guided towards the filtering section. The toxic
particles are deposit on the surface of the filter cartridges.
The cartridges are cleaned automatically by compressed air.
The particles deposited on the cartridge are detached by the
compressed air blast and reach a dust collecting tank. The
cleaned air is recycled to the working space without any heat
loss.
TARGET APPLICATIONS
For which fields can the ECO-Cube be applied?
- as central suction unit for several manual welding stations
- as suction unit for welding robots / cabins
- as suction unit for extraction hoods
FURTHER INFORMATION
How is the ECO-Cube constructed?
The main parts of the ECO-Cube are the fan, pneumatic housing, filter section including cartridges, sparklatch and dust
collecting section as well as the control unit for filter cleaning. The system will be delivered ready for connection. Only the
system modules must be placed and connected. The housing consists of a stable steel plate construction and powder
coating. The control unit is delivered completely preset and is very easy to handle. The control element is specially
developed to survey and control the filter unit. All functions can be easily accessed and adjusted according to the
operation parameters. The ECOCube is equipped with filter cartridges of the filter category BIA M. A special auxiliary
filtering substance is coated on these cartridges already in the factory.
